- It consists of two assemblies: power end assembly and fluid end assembly.
- The crankshaft adopts a double-key eccentric wheel structure. Two pairs of involute helical gears are mounted on both ends of the crankshaft to transmit power and offset axial force. The large and small gears are arranged inside the pump housing, which maximizes the effective space, reduces the overall width of the pump and facilitates pump layout design.
- With light weight, compact structure and high working pressure, the pump is applicable to small fracturing trucks and skid-mounted fracturing units.

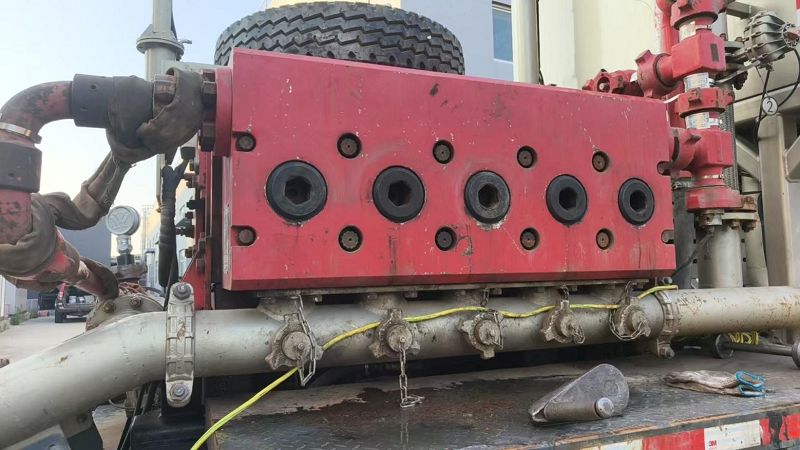

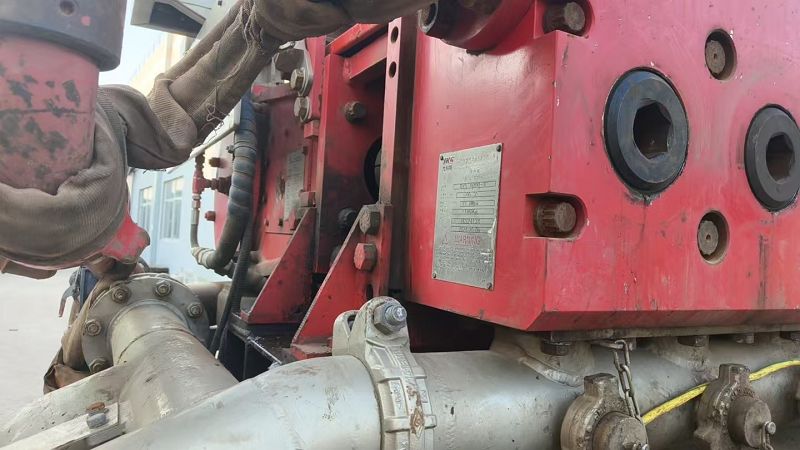

- The fluid end and power end are connected by 8 alloy steel tie rods. The tie rods stay on the power end when removing the fluid end. The plunger is connected to the crosshead via threads, allowing easy disassembly and maintenance of the fluid end.

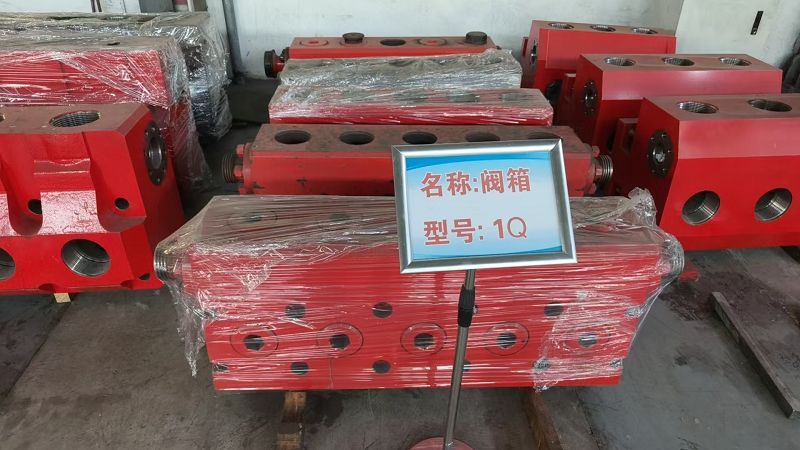

- The fluid end assembly can be fitted with plungers of seven different specifications (2.75 in, 3 in, 3.5 in, 3.75 in, 4 in, 4.5 in, 5 in) to deliver various pressure and displacement options for customers.
Gear transmission ratio: 4.6:1
1. The design and manufacture of the pump assembly meet the standards:
-
SY/T 7015-2014 "Plunger Pump for Cementing and Fracturing"
- ANSI/AWS D1.1 "Steel Structure Welding Code"
- Quality control system: According to ISO9001-2001 quality system
- SY/T7015-2014 "Plunger Pump for Cementing and Fracturing"
2. Pump assembly parameters
Rated Maximum braking horsepower: 1000BHP (746Kw) Maximum connecting rod load: 100,000 lbs (43,360 kg) Stroke: 6 inches (152.4)
Transmission ratio: 4.610:1
Length (Approximate): 50.25 inches (1276 mm)
Width (approximate): 52.93 inches (1344 mm)
Height (approximate): 23.88 inches (607 mm) Net Weight (Approximate): 7000 lbs (3175 kg)
Product model: 5ZB-750 Product brand: 1000
3. Accessories and requirements:

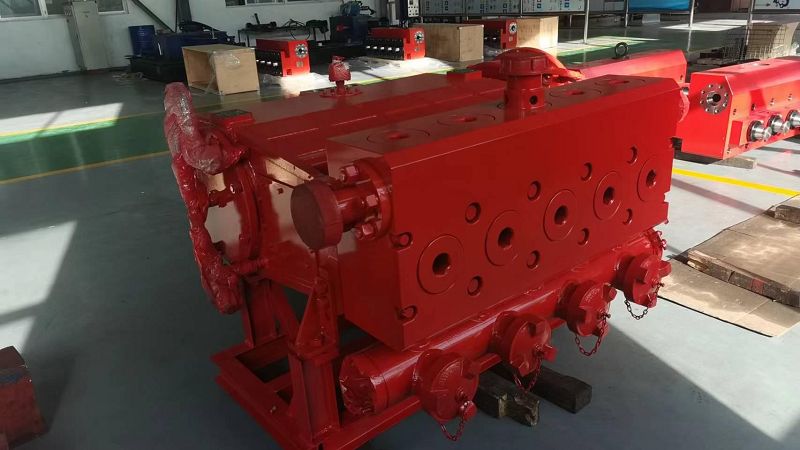

1000 Quintuple PumpThe 1000HP pump assembly is mainly composed of power end assembly, fluid end
assembly, reduction box assembly, power end lubrication pipeline and reduction box lubrication pipeline and other parts.
90% mechanical efficiency, 100% volumetric efficiency - only for intermittent duty.
Note: The pump operates intermittently under the highest pressure condition, the continuous working time shall not exceed 1 hour, and the continuous working time of the pump shall not exceed 3 hours under 80% of the highest pressure condition, which is beneficial to prolong the service life of the equipment, ( The same applies to drilling fluids).
Plunger diameter selection:
3.1. Power end assembly:
The power end assembly is mainly composed of: crankshaft, connecting rod, crosshead, connecting rod pin, copper tile, small tie rod, bearing, power end housing, etc.
3.1.1, power end shell
Heat treatment of high-strength steel after welding to relieve stress
Precision boring processing
3.1.2. Crankshaft
Integral type, the material is alloy steel forging.
Fine grinding crankshaft journal
3.1.3 Crosshead
Finished from high-strength ductile iron
Crosshead guide sleeve
Designed as a replaceable semi-cylindrical shape, it is made of alloy cast iron and is fastened inside the pump casing by bolts;
Cross pin
It is made of low alloy steel after carburizing and quenching treatment.
All processing surfaces should be coated with grease to avoid corrosion, and all cover fixing bolts should be coated with sealant;
(2) After heat treatment and flaw detection inspection.
3.2 Drawings
3.3 Gear box assembly:
The gearbox assembly is mainly composed of: gearbox housing, large gear, input shaft, bearing, etc.;
After assembly, ensure that the gears can be rotated flexibly by hand;
Apply liquid silicone packing seal between the bearing end cover and the cover plate and the shell;
When assembling large and small gears and bearings, use press fitting or hot fitting, and the heating temperature should not exceed 121°C.
3.4 Power end lubrication pipeline:
Apply sealant to all joints;
All the oil pipes should be fixed reliably, and the collision of the crankshaft and connecting rod should be avoided during operation;
3.5 Gear box lubrication pipeline:
Apply sealant to all joints; .
All oil pipes should be fixed reliably, and the collision of the crankshaft and connecting rod should be avoided during operation;
4.Technical data
Instruction manual, including product technical parameter introduction, structural description, maintenance instruction, product size description, etc.; three copies of the manual
are required, Chinese version.
product certificate;
Pump assembly test report;
5. After the agreement is signed and becomes effective, it will serve as the basis for the supplier to purchase materials and produce. As an annex to the contract, it has the same legal effect as the contract, and the representatives of both parties sign it to take effect.
6. This agreement is in duplicate, and each party holds one copy.
1000 Quintuple Pump
Under normal service conditions and proper operating procedures, the warranty period of the plunger pump shall be 12 months counting from the date of delivery by Party B (wear parts of the fluid end excluded). Within the warranty period, if any quality defects of non-conventional wear parts are found, Party A reserves the right to require Party B to replace with new spare parts and conduct repairs free of charge.
During the warranty period, Party B shall respond to inquiries and requests raised by the user via on-site phone or fax within 4 hours and provide corresponding solutions. In the event of breakdowns or quality failures, Party B shall dispatch service personnel to the site for troubleshooting within 48 hours upon receipt of notification.
