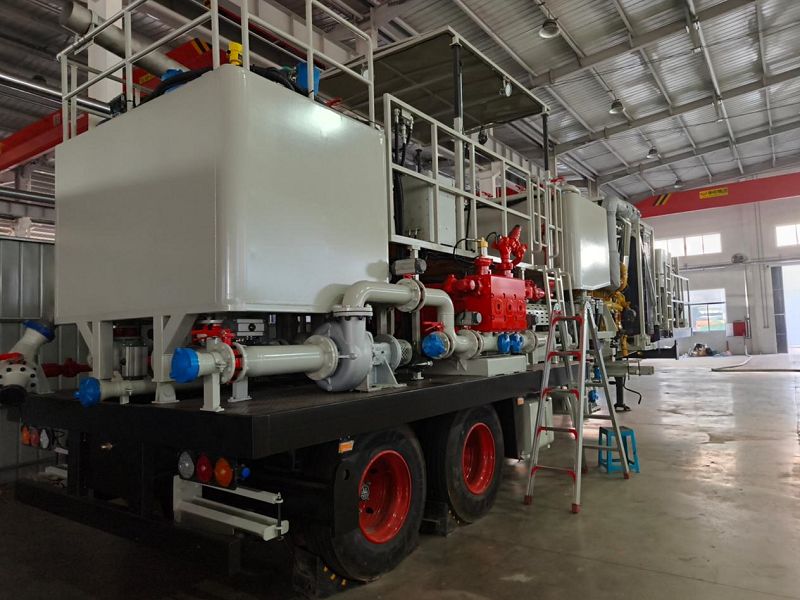

Manufactured by YUKOS , the BY600 pump is a horizontally operated reciprocating triplex single-acting plunger pump with a maximum driving power of 600 horsepower. Developed specifically for intermittent wellhead operations, it is applicable for well servicing operations including acidizing, cementing, fracturing, well killing and gravel packing.
The BY600 pump 600 Triplex Plunger Pump
consists of a power end, reduction gearbox and fluid end. The gearbox can be mounted on either the left or right side of the pump. Subject to varied pump drive transmission configurations, the gearbox is available for installation at any of seventeen alternative input shaft positions. Required working pressure and displacement are achieved by replacing two alternative liner assemblies together with matching plungers.
Different packing assemblies, valve assemblies, discharge flanges and suction manifolds are configurable for the BY600 pump to accommodate customer-specified connection types, working fluids and service environments. Variations in plunger specifications and other spare parts may result in minor fluctuations in overall pump weight, with the total weight deviation controlled within ±5% of the theoretical rated weight.
Basic Design and Construction Details of BY600 Pump Manufactured by Youks
600 Triplex Plunger Pump
A. Power End Design

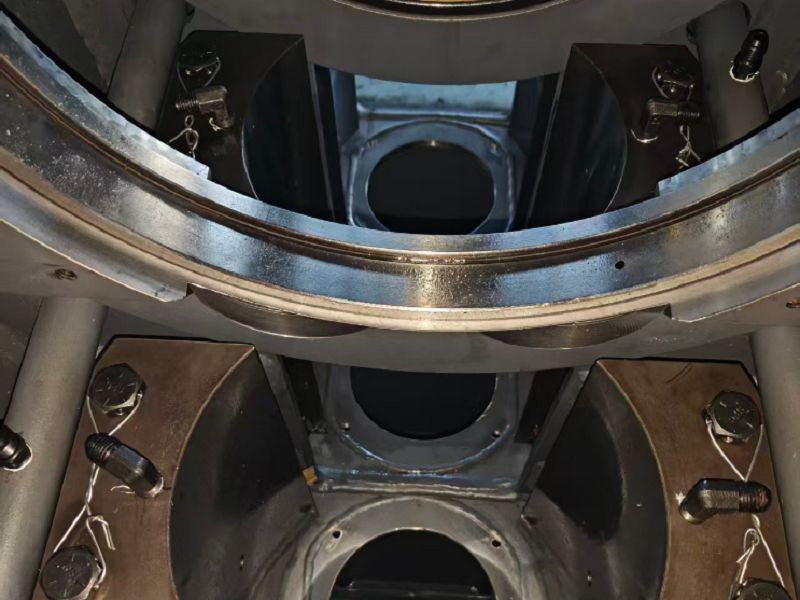

Frame
Fabricated via metal welding followed by integral stress relief annealing;
Coaxial boring machining.
Crankshaft
Made of forged alloy steel with overall heat treatment and precision finishing, plus surface hardening and polishing;
Supported by four heavy-duty cylindrical roller bearings.
Connecting Rod
Precision-machined from high-strength ductile iron in I-section form.
Crosshead
Semi-cylindrical structure;
Precision-machined from high-strength ductile iron.
Crosshead Guide Shoe
Replaceable semi-cylindrical design;
Precision-machined from cast iron.
Crosshead Pin
Alloy steel subjected to heat treatment then precision machining.
Lubrication System
Delivers forced feed lubrication to all moving components;
Equipped with an independent oil tank assembly.

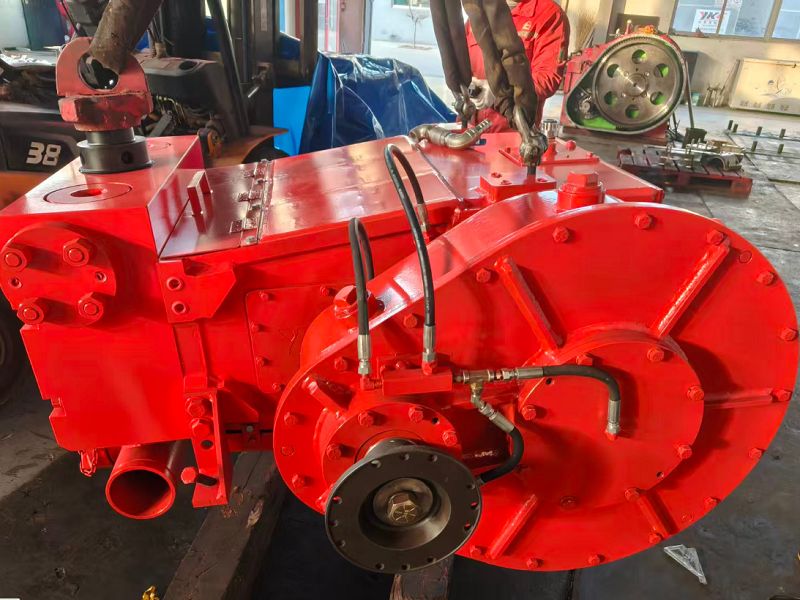

B. Reduction Gearbox Design
Housing
Parallel-shaft configuration; Fabricated from welded steel plates, integrally stress-relieved by annealing and coaxially bored.
Large Gear
High-strength AGMA Class 8 helical gear; Precision-machined from high-grade cast alloy steel; Gear teeth induction hardened; Supported by two heavy-duty tapered roller bearings.
Pinion & Input Shaft
High-strength AGMA Class 8 gear; Integral pinion-shaft construction made of high-strength alloy steel with full heat treatment followed by precision machining; Gear teeth induction hardened; Supported by two heavy-duty tapered roller bearings; Fitted with Spicer 1800/1810 series connection flange.
Gear Ratio
Reduction ratio: 4.61:1; Capable of direct drive from a 2100 rpm diesel engine or electric motor without exceeding the pump's rated rotational speed.
Lubrication System
Forced pressurized lubrication supplied to all moving parts; Outfitted with an independent dedicated oil tank assembly.
C. Fluid End Design

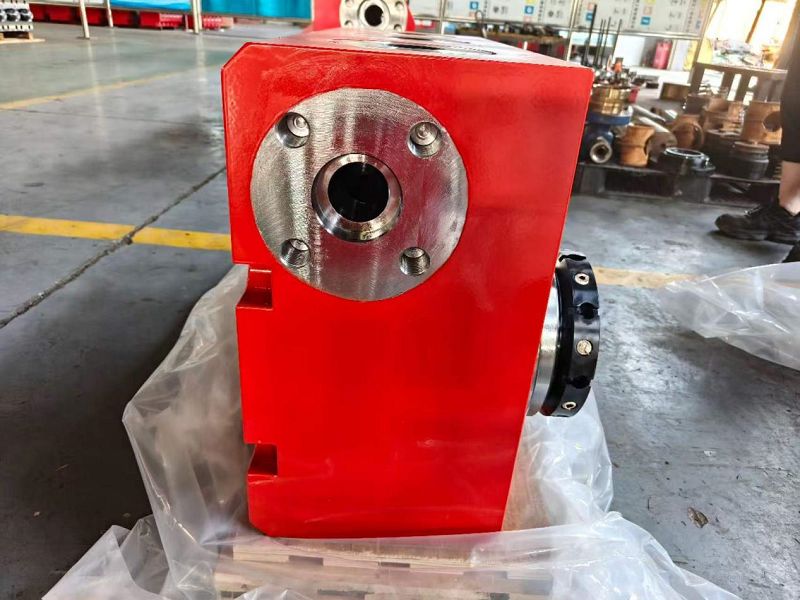

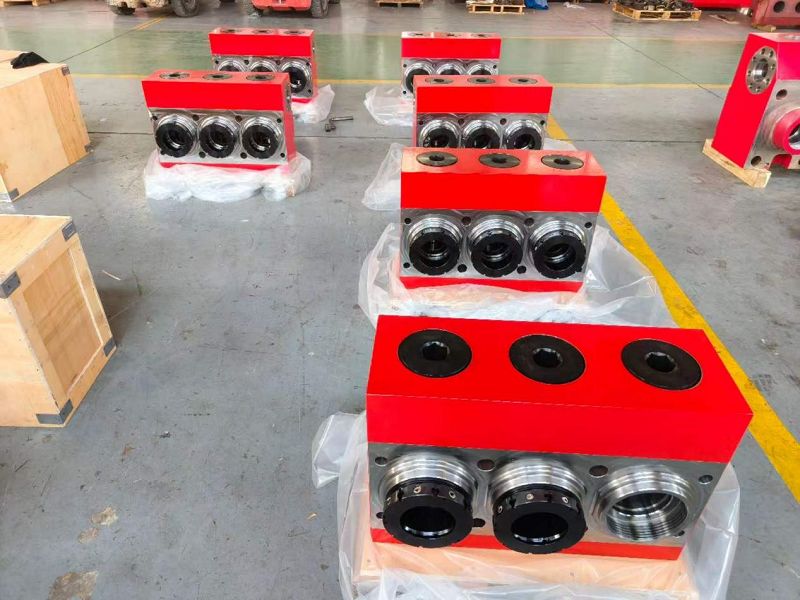

Fluid End
Integrated upper-valve-on-valve construction for reduced maintenance workload;
Precision machined from high-strength forged alloy steel after full heat treatment.
Plunger
Low-carbon steel base with tungsten alloy surface coating;
Excellent acid and corrosion resistance.
Packing
Self-adjusting packing structure;
Adopts high-performance precision compressed V-type fiber rings supported by precision-machined bronze adapter rings;
Multiple structural options available to suit various wellhead service media including hydrochloric acid, cement slurry, mortar liquid, hydrocarbons and toluene, accommodating wide fluctuations in ambient and fluid operating temperatures.
Valve Assembly (Wing-guided Valve)
Equipped with replaceable urethane or neoprene valve inserts;
Comes with universal conical valve seat and auxiliary sealing rings.
Valve Spring
Disc spring configuration engineered for prolonged operation under diverse well service conditions;
Design specifications cover spring rigidity, pre-installed spring load as well as custom-set cracking and opening pressures for general-purpose plunger pumps.
Valve Spring
Disc spring configuration engineered for prolonged operation under diverse well service conditions;
Design specifications cover spring rigidity, pre-installed spring load as well as custom-set cracking and opening pressures for general-purpose plunger pumps.
Suction Valve
Low-opening-flow style valve;
Mounted outside the high-stress surface of the fluid end.
Discharge Flange
Discharge ports arranged on both left and right sides;
Precision machined from heat-treated monolithic alloy steel;
Interchangeable male/female connections compatible with standard clamps and hammer unions for various wellhead hookup requirements.
Suction Manifold
Suction ports arranged on both left and right sides;
Fabricated from welded steel components with all parts precision machined and subjected to integral hydrostatic pressure testing;
Quick-disconnect stainless steel joints fitted at both manifold ends.
Fluid Seals
Seal elements precision die-cut from polyurethane or two-component sealing compound;
High pressure and acid resistant for liquid service.
Packing Lubrication System
Fitted with pressurized lube oil pump.
600 Triplex Plunger Pump
English Translation
Under normal operation and proper operating procedures, the warranty period for YOUKS plunger pumps shall be 12 months from the date of delivery by Party B (excluding wearing parts of the fluid end). Within the warranty period, if quality defects are found in non-conventional wearing parts, Party A reserves the right to request Party B to provide free replacement of new components and carry out repairs.
During the warranty period, Party B shall respond to on-site inquiries and requests submitted by the Customer via phone or fax within 4 hours and propose corresponding solutions. In the event of equipment breakdowns or quality failures, Party B shall dispatch service personnel to the site for troubleshooting within 48 hours upon receipt of the notification.
